Safe Pallet Puller

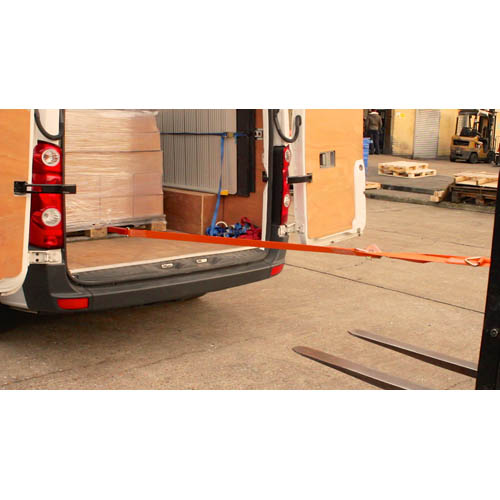

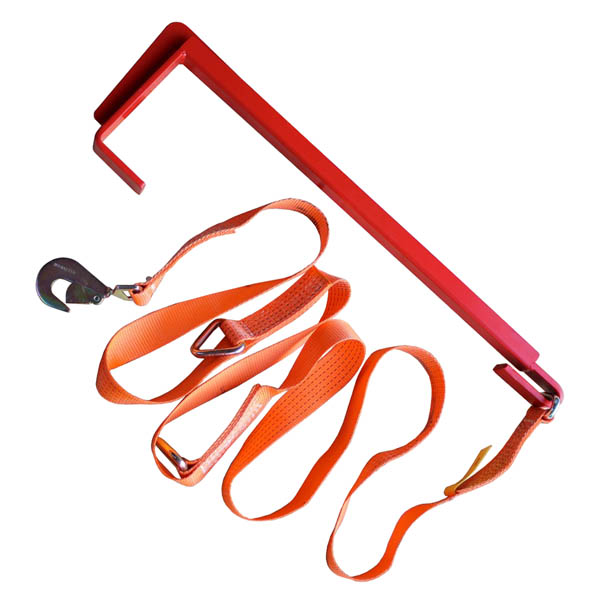

The Safe Pallet Puller is designed to pull pallets to a safe lifting position on a van, truck or lorry, by a forklift truck. The Safe Pallet Puller comes in two parts: the elongated hook and the strap containing adjustable anchor points.
INSTRUCTIONS

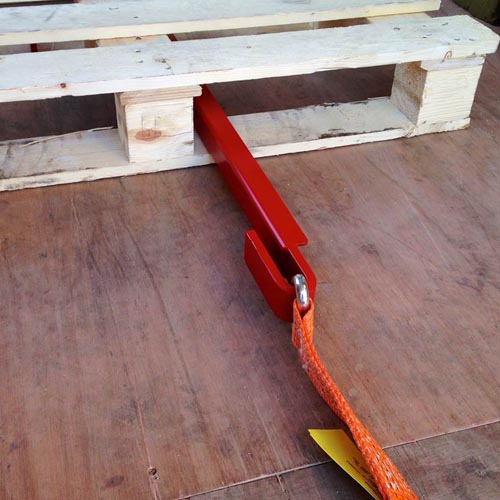

- Attach the pallet puller metal hook to central stump of the pallet you wish to move, ensuring a secure fit
- With the hook in position attach the strap to the open ended coupling using the metal oval ring
- Keep a degree of tension on the strap

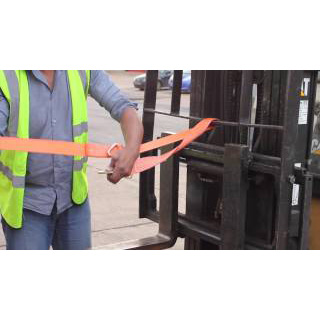

- Thread the strap through an anchor point of the forklift truck
- Use safety hook to secure to ring
- Forklift truck should pull slowly without jerking movements
MODEL | SP1 | SP2 |
DESCRIPTION | Pallet Puller Regular | Pallet Puller Medium |
PULLING CAPACITY | 1000 kg | 1000 kg |
STRAP LENGTH | 3700 mm | 5000 mm |
LOADING LENGTH | 3000 mm | 4350 mm |
NOTE 1 | For side or back door loading access. | |
NOTE 2 | Works with 4000mm loading length using side door loading. |
For vehicles without side door loading access e.g. Box Luton vans. |
