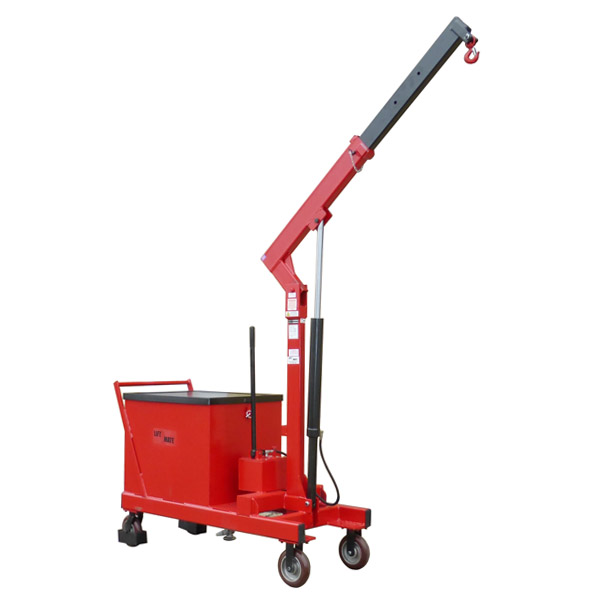

Counterbalanced Crane – 750kg Capacity
Counterbalance cranes are ideal for a large number of workshop requirements and give the operator complete freedom of movement at the front lifting area.
- Heavy-duty swivel hook and hook safety latch
- Hard chrome ground hydraulic ram and double acting pumps
- Hand-operated control valve
- Relief valve to prevent overload
- Three position telescopic jib
- Swivel castors at one end for on-the-spot turning
- Fully tested with 25% overload
- Manufactured from hollow steel box section for strength and lightness
- Fitted with ergonomic polyurethane tyred aluminium centred fabricated swivel castors with foot guards for on-the-spot turning and fixed castors on the front
- Designed with an empty steel box to hold counterweight
- OPTIONAL COUNTERWEIGHT CAN BE SUPPLIED
Capacity: | 750kg |
Max. Lift Height: | 2730 mm |
O/A Size (H x W x D): | 1850 x 640 x 1470 mm |
